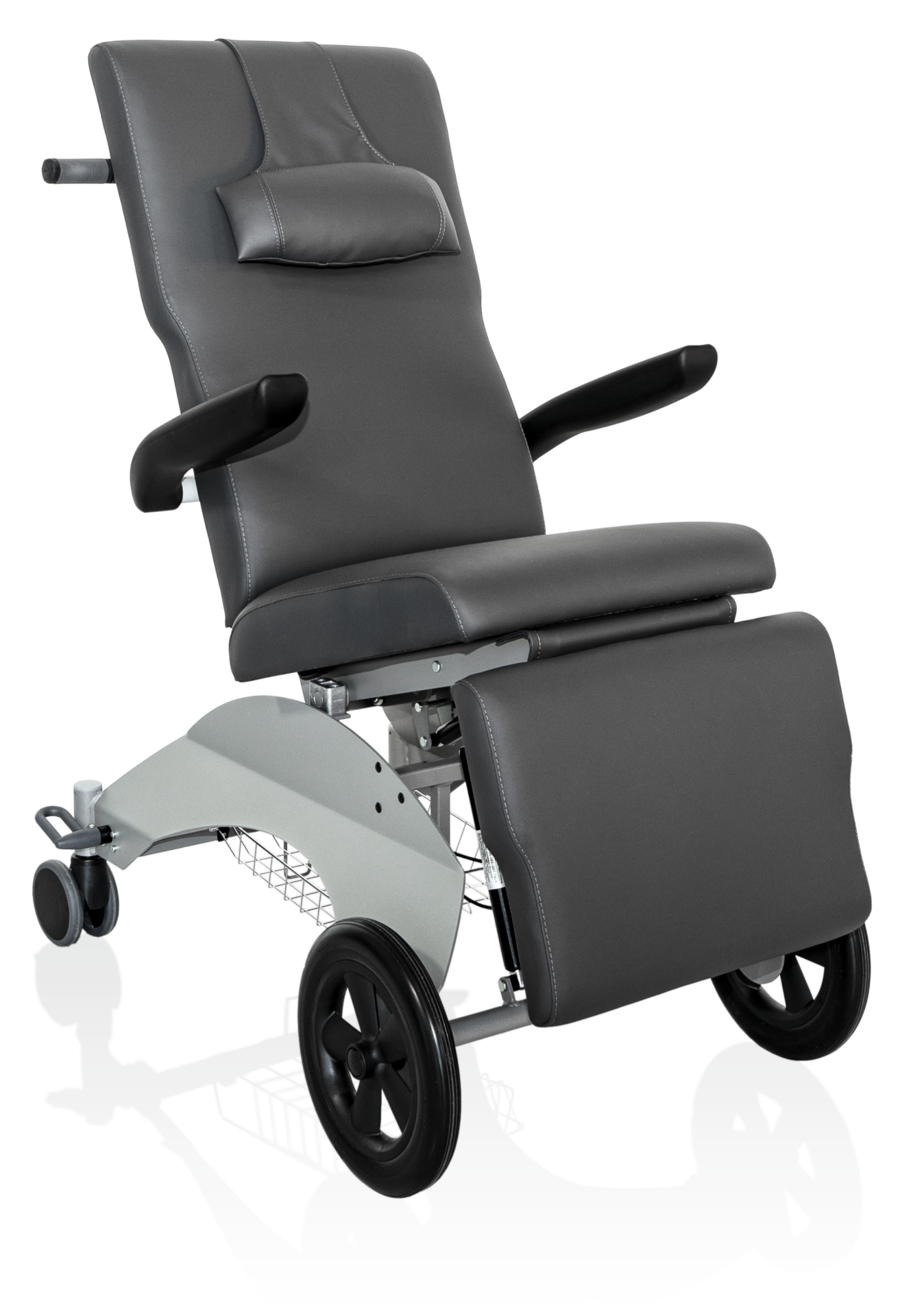

The UFSK motionLine-Eye is a mobile, ergonomically designed patient preparation, transport and relaxation chair, which has been specially developed to support the daily workflow of healthcare institutions, especially ophthalmology centers.
The primary goal of the system is safe, comfortable and efficient patient movement, as well as the optimization of surgical preparation and post-treatment processes.
Construction and mechanical design: Stable, industrial steel frame
Compact size: length: approx. 1000–1750 mm, width: approx. 650–680 mm
4-point chassis: 2 large wheels (foot section), 2 swivel double wheels (head section)
Double-sided brake system for stable fixation. Max. load capacity: 135 kg
Movements and positioning
The motionLine is available in two main versions:
Pneumatic version (motionLine)
Gas spring adjustment, Foot pedal control. Infinitely variable backrest, seat and leg adjustment.
Electric version (motionLine-Eye)
Electromotor adjustment (back/seat/leg). Manual control panel. Battery operation (optional)
Emergency stop function
Positioning features:
Synchronous movement (back + leg)
Full lying position
“shock position” (Trendelenburg-like)
Ergonomics and patient comfort: Adjustable headrest and neck support. Ergonomic backrest, integrated lumbar support.
Thick, comfortable lying surface. Removable / foldable armrests. Wide lying surface for longer rest.
The design goal: maximum patient comfort, stress-free pre- and postoperative condition.
Mobility and handling: easy to move the system by one person. Ergonomic push handles.
Stable, easy-to-control chassis. Central or double-sided braking.
Key advantage: fast and safe patient transport between the operating room, preparation room and recovery room
Hygiene and design: easy-to-clean, disinfectable upholstery. High wear-resistant surfaces.
Antibacterial material selection: multiple color options (can be matched to institutional design)
Accessories and expandability: IV pole, instrument tray, storage basket.
Battery unit (for E version)
Application areas: ophthalmic surgical preparation and aftercare. IVOM treatments. Outpatient surgery.
Patient transport between the operating room and the ward. Day surgery.
Its role in the EyeForce system: the motionLine-Eye is not an operating chair in the classical sense, but:
– a workflow tool, connects preparation, surgery and rest, reduces the need for patient movement,
supports the rotational surgery system, increases the utilization of the operating room
In practice: the patient arrives on the motionLine chair, is moved on the same chair, no transfers – faster process.
Summary – professional assessment: The UFSK motionLine-Eye is a modern, mobile patient transport and rest system that: provides a high level of ergonomics and patient comfort, enables simple and safe patient movement,
can be integrated into modern surgical workflow systems and significantly contributes to increasing institutional efficiency. It is not a stand-alone “chair”, but a key element of an efficient ophthalmic surgical chain.
Manufacturer: UFSK-International OSYS
Type: UFSK MotionEye
